Premium Plain & Printed Aluminum Strip Foils
High-Quality, Customizable Solutions for Pharmaceutical Strip Packaging
RAMA FOILS offers a wide range of plain and printed aluminum strip foils designed for the secure and efficient packaging of pharmaceutical products like tablets and capsules. Our foils are manufactured using premium materials and advanced technology, ensuring durability, compliance with industry standards, and enhanced product safety. Whether you need standard or customized specifications, we deliver solutions tailored to your unique requirements.

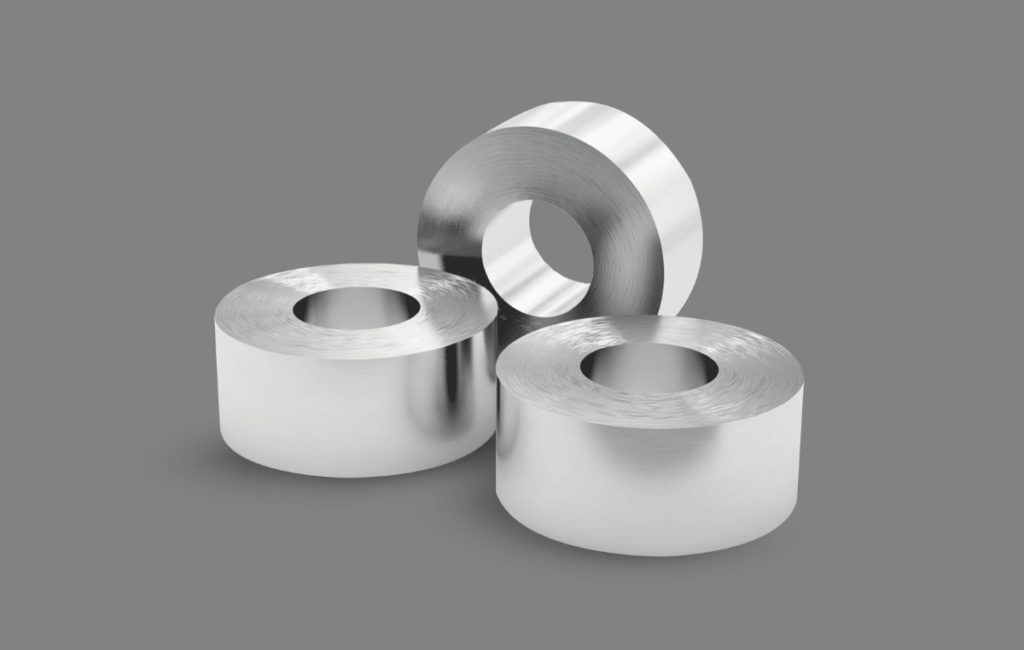

Plain & Printed Aluminum Strip Foils
RAMA Foils offers high-quality soft aluminum foils designed for strip packaging of pharmaceutical products such as tablets and capsules. Specifications can be customized based on customer agreements.
FOIL MATERIAL:
Soft, fully annealed aluminum alloy (AA 8011 / AA 1200) compliant with Aluminum Association standards.
| Std Foil Gauge Options | Tolerance ( +/-8% ) | Min. Bursting Strength |
|---|---|---|
| 0.025 mm | +/- 0.002 mm | 1.5 kg/sq. cm |
| 0.030 mm | +/- 0.0024 mm | 2.3 kg/cm |
| 0.040 mm | +/- 0.0032 mm | 2.8 kg/cm |
SEALANT:
Colourless LDPE, meeting government regulations for direct contact with medicines and pharmaceuticals.
| Standard Polymer Gauge | Nominal | Tolerances ( +/- 15% ) |
|---|---|---|
| Options | GSM | GSM |
| 150 | 34.39 | +/- 5.16 |
| 180 | 41.27 | +/- 6.19 |
| 200 | 45.85 | +/- 6.88 |
| DENSITY OF LDPE : | 0.917 g/cc |
|---|---|
| PEEL STRENGTH OF LAMINATION : | 200 g/15 mm min. |
| SEAL STRENGTH BET. TOP & BOTTOM FOIL: | 450 g/15 mm min. |
| PRINTING AND LACQUER COATING: | Printed as per text, layout and approved by the Customer. For non-printed specification, clear. |
| Lacquer to be coated as a protective coating and good printability. | |
| Printing inks and lacquer coatings are capable to withstand 180 deg. C for 1 sec. dwell time. | |
| CONFIGURATION: | Printed and Unprinted Pharma Foils are available in the reel forms. Unprinted pharma foils are also available as Jumbo roll. |
| WINDING DIRECTION: | Generally, printed or clear lacquer side is out in the finished reel. |
| CORE: | Material options: (a) Plastic (b) Aluminium (c) Card Board |
| CORE ID: 76 mm +/- 0.5 mm. The length of the core is equal to the width of the web. | |
| SPLICES: | Butt type made with 25 mm pressure-sensitive tape. |
| REEL OUTER DIAMETER : | 250 +/- 10 mm for slit material. 400 +/- 10 for Jumbos. |
| REEL WANDER : | Within +/- 1 mm |
| REEL/WEB WIDTH : | Plain: 45 mm to 800 mm with a tolerance of +/- 0.5 mm. Printed: 45 mm to 600 mm with a tolerance of +/- 0.5 mm. |
| JOINTS PER REEL : | Maximum 2. Average less than 1. |
| PIN HOLES : | Nil. |
| IDENTIFICATION : | Each reel shall be identified with a sticker with Reel number, Specification, Net weight, Gross weight, Operator name & Date manufacture. |
|---|---|
| PACKING : | Pharma foils are packed in cardboard carton. Relevant makings are provided on each outer Package. |
| RECOMMENDED OPERATING CONDITIONS : | Sealing temperature : 130 to 150 deg. C |
| Sealing pressure : 2.8 to 5.6 kg/sq. cm or 40 to 80 lbs/sq. | |
| Dwell time : 0.25 to 0.5 sec. | |
| COVERING AREA OF 1 Kg FINISHED MATERIAL ( NOMINAL ) | Gauge & Temper Foil Covering area in sq. mts/kg with 150 Gauge Polyethylene lamination |
| 0.025 ( soft ) : 9.78 | |
| 0.03 ( soft ) : 8.64 | |
| 0.04 ( soft ) : 7 |
| Thickness ( mm ) | GSM | ||||
|---|---|---|---|---|---|
| Min. (-8%) | Nominal | Max. (+8%) | Min. (-8%) | Nominal | Max. (+8%) |
| 0.023 | 0.025 | 0.027 | 62.33 | 67.75 | 73.17 |
| 0.028 | 0.03 | 0.032 | 74.8 | 81.3 | 87.8 |
| 0.037 | 0.04 | 0.043 | 99.73 | 108.4 | 117.07 |
| Thickness ( mm ) | GSM | ||||
|---|---|---|---|---|---|
| Min. (-15%) | Nominal | Max. (+15%) | Min. (-15%) | Nominal | Max. (+15%) |
| 0.0319 | 0.0375 | 0.0431 | 29.23 | 34.39 | 39.55 |
| 0.0383 | 0.045 | 0.0518 | 35.08 | 41.27 | 47.46 |
| 0.0425 | 0.05 | 0.0575 | 38.97 | 45.85 | 52.73 |
Why Choose RAMA FOILS Aluminum Strip Foils?
Our aluminum strip foils are engineered to meet the highest standards of quality and performance. Here’s what makes them stand out:
Ready to Start Your Pharmaceutical Packaging?
Whether you need standard aluminum strip foils or customized solutions, RAMA FOILS is here to help. Contact us today to discuss your requirements, request a quote, or schedule a consultation.
